KwikPrint Machine Temperature Control Box
Omron Temperature Controller Replacement.
Page 3
Previous Page  Next Page

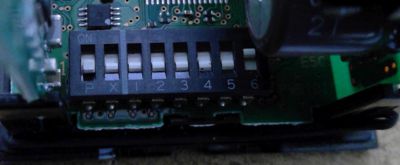

Dip_Switch
Use a small screw driver to set the dip switches on the new controller as shown.
Dip Switch Settings
P.OFF
X.OFF
1.OFF
2.OFF
3.OFF
4.OFF
5.OFF
6.ON
KwikPrint Temperature Control Used a K type thermcouple.

Omron E5CSV Manual
